Quick start

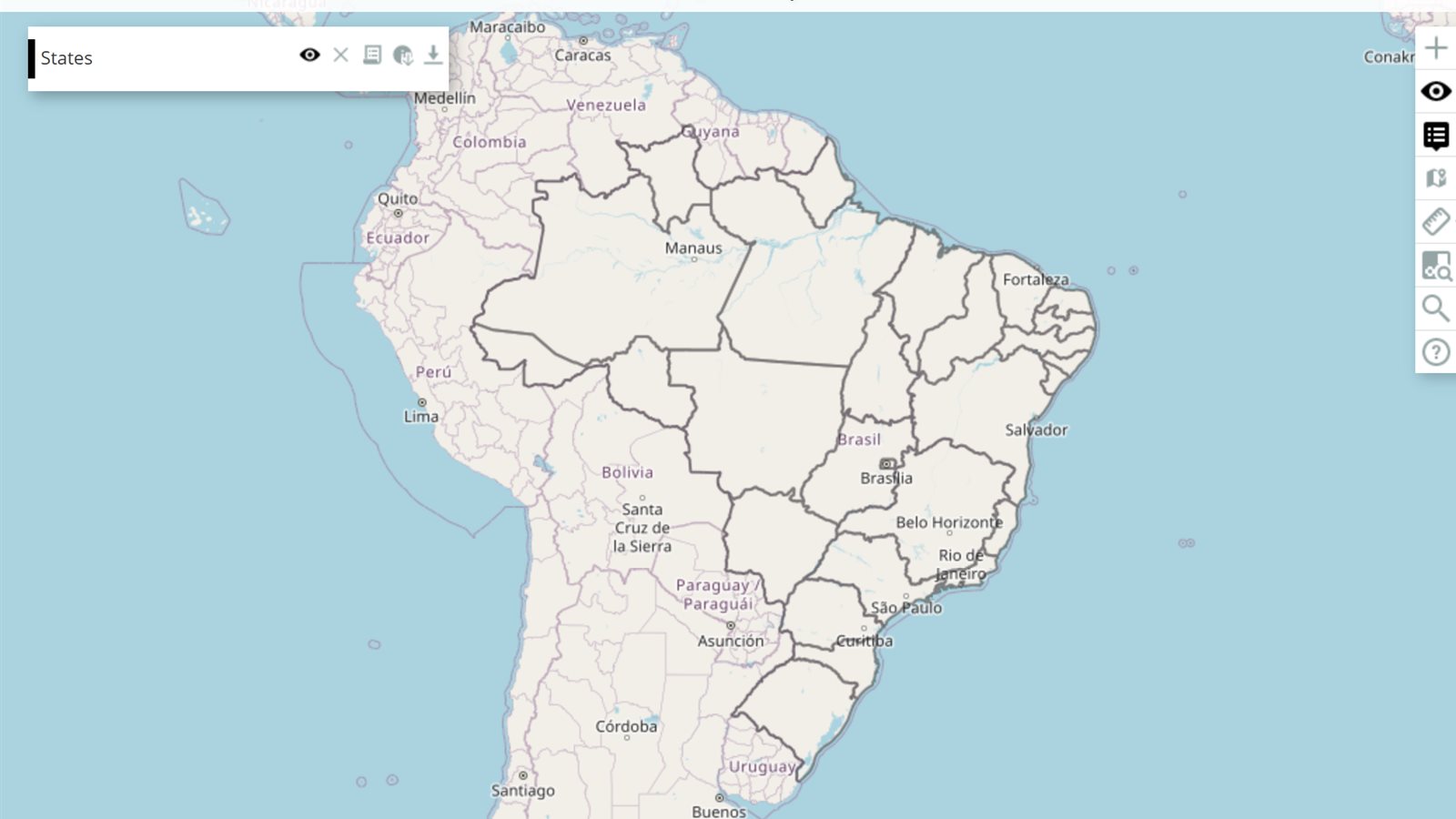

The example below, running in the Mappia calculator - click it to run it live. Full-size picture
- Run it
Click the picture: the map opens right here and runs the example. Nothing is saved, and nothing to install.
- Try it
- Click the ruler button, then click two points on the map: the distance between them appears.
- Turn on the identify button and click a state: the attributes of that state appear.
- In your own map’s address, set
tools=measure: of the optional buttons, only the ruler remains.
- Make it yours
Copy the query, change it - the key parameters are below - and run it again in the playground, or paste it into the Mappia editor to save it as your map.
Key parameters
| Parameter | Example | What it does |
|---|---|---|
measure | tools=legend,measure,getfeature | Adds the ruler, for measuring distances on the map. |
getfeature | tools=getfeature,zoomextent | Adds the identify button: click the map to see the attributes of what is under the click. |
legend | tools=legend,measure | Adds the button that opens the legend of the visible layers. |
scale | options=scale,grid,overview | Shows a scale bar at the bottom left of the map. |
startopened | options=scale,startopened | Opens the layer panel when the map loads, instead of leaving it closed behind its button. |
capabilities | options=scale,capabilities | Loads only the maps the query names, for a faster start. Needs a saved query id. |
Every parameter, with its type and default, is in the reference at the end of this page.
Complete example
The query 6 lines · runs as is
// Map toolbar tools and page options are chosen in the page URL, not in the query:
// /calculator/?queryid=...&tools=legend,measure,getfeature,hovershowlegend,zoomextent,customzoom,metadata,helpintro
// &options=scale,grid,overview
[
{ name: "CSR:estados", title: "States", visibility: true, opacity: 0.5 },
];Customize it
They live in the address, not in the query
The toolbar and the page options are chosen by the address of the page that shows the map, so the same query can have a full toolbar in one place and a bare map in another:
https://maps.csr.ufmg.br/calculator/?queryid=YOUR_QUERY_ID&tools=legend,measure,getfeature,zoomextent,customzoom,metadata&options=scale,grid,overview
Lists are comma-separated, without spaces.
Toolbar buttons: tools=
| Token | Button |
|---|---|
legend | Opens the legend of the visible layers |
zoomextent | Zooms to the visible layers |
customzoom | Drag a box to zoom into it |
getfeature | Identify: click the map to read the attributes under the click |
measure | Ruler for distances |
metadata | Shows the published description of the visible maps |
hovershowlegend | Shows the legend value under the mouse pointer |
helpintro | A short guided tour of the interface |
Without tools= every button is shown. With it, only the listed ones are. The zoom buttons and a few platform buttons are always there, whatever the list says.
Page options: options=
| Token | Effect |
|---|---|
scale | A scale bar at the bottom left |
grid | Lines of latitude and longitude |
overview | A small overview map at the bottom right |
startopened | The layer panel starts open |
hidestylechooser | Hides the style list of every layer |
hidemetadata | Hides the metadata button of every layer |
disabledownload | Hides the download button of every layer |
onlyfirstvisible | Only the first layer starts visible |
capabilities | Loads only the maps the query names (needs a real queryid) |
keeponleave | Controls mouse-wheel zoom when the map is embedded in another page |
Use a single options=
Put every option in one comma-separated options= parameter. Repeating options= in the same address froze the page in our tests.
Other useful parameters
visiblelayers=customstarts each layer as its ownvisibilitysays; a numberNstarts the firstNlayers visible.extent=minX,minY,maxX,maxYsets the starting view, in longitude and latitude.lang=engshows the interface in English (ptis the default).
Tokens that do nothing
Many shared links carry tools=layerchooser and options=enablequeries. Neither has any effect: they are harmless in old links, but leave them out of new ones. Options for single layers - such as hiding one layer’s buttons - are layer properties: see layer panel buttons.
