In this step you learn
  • What a WMS map server is, and how its catalogue gives each map a name.
  • How to find the name of a map.
  • How ExtjsUtils.QUERY.addRemoteWMSServer registers another server, and source points a layer at it.

The catalogue

The maps of Mappia live on a map server (GeoServer) that speaks WMS, the standard way to serve maps on the web: the browser asks for a piece of a map - a tile, at a zoom level - and the server draws it. The server also publishes a catalogue (its capabilities document) that lists every map it serves, each with:

  • a name, WORKSPACE:map - what goes in a layer’s name, like CSR:estados;
  • a title, the human name the layer list shows by default;
  • its styles, the ways it can be drawn - usually <map>_1 (altimetria_1), chosen with the layer property styles.

When the calculator starts, it reads that catalogue. A layer whose name is not in it is not shown - the first thing to check when a layer is missing. To find names, look at the queries of the examples and the tools, or at the catalogue itself: https://maps.csr.ufmg.br/geoserver/wms?request=GetCapabilities (large: every map).

Maps from another server

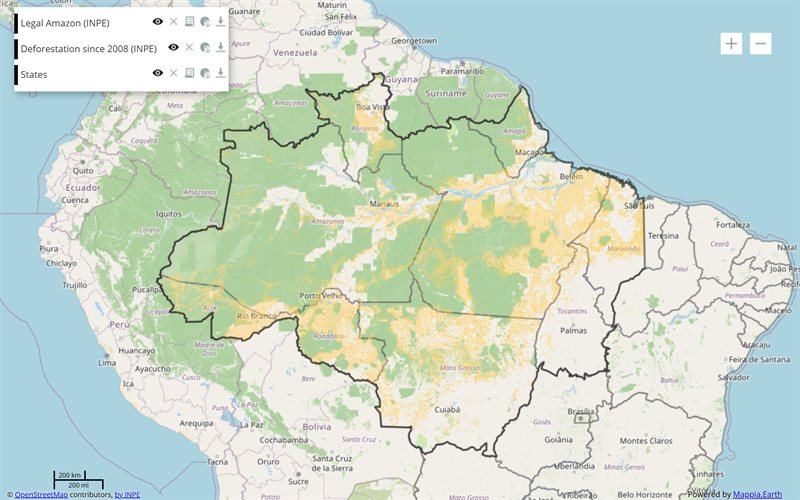

Maps from elsewhere come in two steps: register the server under a name of your choice, then point layers at it with source. This example shows the deforestation monitoring of INPE (PRODES), served by TerraBrasilis, INPE’s own map server, on top of a Mappia map:

Click the picture to run it live - nothing is saved.
Edit it in the playground
The query 29 lines · runs as is
// Maps from another server: addRemoteWMSServer registers a WMS server under a name of your choice, and each layer names it in source - here INPE's deforestation monitoring (PRODES).
// The server is TerraBrasilis, INPE's map server; this address is its "prodes-legal-amz" workspace,
// whose catalogue is small and quick to read. The registration comes first in the && chain, so
// the server is known when the layers are read. Layers without source still come from Mappia.
ExtjsUtils.QUERY.addRemoteWMSServer({
  prodes: {
    url: "https://terrabrasilis.dpi.inpe.br/geoserver/prodes-legal-amz/ows?",
  },
}) && [
  {
    name: "brazilian_legal_amazon",
    source: "prodes",
    title: "Legal Amazon (INPE)",
    visibility: true,
    opacity: 0.5,
  },
  {
    name: "yearly_deforestation",
    source: "prodes",
    title: "Deforestation since 2008 (INPE)",
    visibility: true,
  },
  {
    name: "CSR:estados", // from the Mappia catalogue, as before
    title: "States",
    visibility: true,
    opacity: 0.4,
  },
];
  • ExtjsUtils.QUERY.addRemoteWMSServer({ ... }) registers each server by a key - here prodes - with the address of its WMS service as url.
  • Each layer that says source: "prodes" is looked up in that server’s catalogue, not in Mappia’s, and its tiles are drawn by that server. CSR:estados has no source: it still comes from Mappia. One map can mix as many servers as you need.
  • The address is not the whole server but one workspace of it, prodes-legal-amz. Its catalogue lists a dozen maps instead of hundreds, so the map opens faster - the catalogue is read every time. Inside a workspace’s own address, GeoServer lists the maps without the workspace prefix: the name is yearly_deforestation, not prodes-legal-amz:yearly_deforestation. Open the catalogue to be sure: https://terrabrasilis.dpi.inpe.br/geoserver/prodes-legal-amz/ows?service=WMS&request=GetCapabilities.
  • The registration comes before the list, joined with &&. The platform reads the query left to right, so the server is known when the layers are read; the call returns true, so the expression goes on to the list (step 7 explains this && chain).

Any WMS server is registered the same way. Another one, IBGE’s - its catalogue does use the WORKSPACE:map form:

ExtjsUtils.QUERY.addRemoteWMSServer({
  ibge: { url: "https://geoservicos.ibge.gov.br/geoserver/CCAR/wms?" },
}) && [
  { name: "CCAR:Hidrografia_2016", source: "ibge", title: "Hydrography (IBGE)", visibility: true },
];

INPE and IBGE let the browser read their maps directly. A server that does not can be read through Mappia’s proxy instead, with cors: true in its registration. Maps you publish yourself with the Mappia QGIS plugin live in a GitHub repository and are registered the same way, with storage: "github" - see Publish maps yourself.

Try this

  1. Add the indigenous lands of the same server: { name: "indigenous_area_legal_amazon", source: "prodes", title: "Indigenous lands", visibility: true }.
  2. Remove source: "prodes" from a layer: the map is looked up in the Mappia catalogue instead, where it does not exist, and is not shown.
  3. Rename the server - prodes to inpe - in the registration and in every source. The name is yours to choose.

Read more
