Quick start

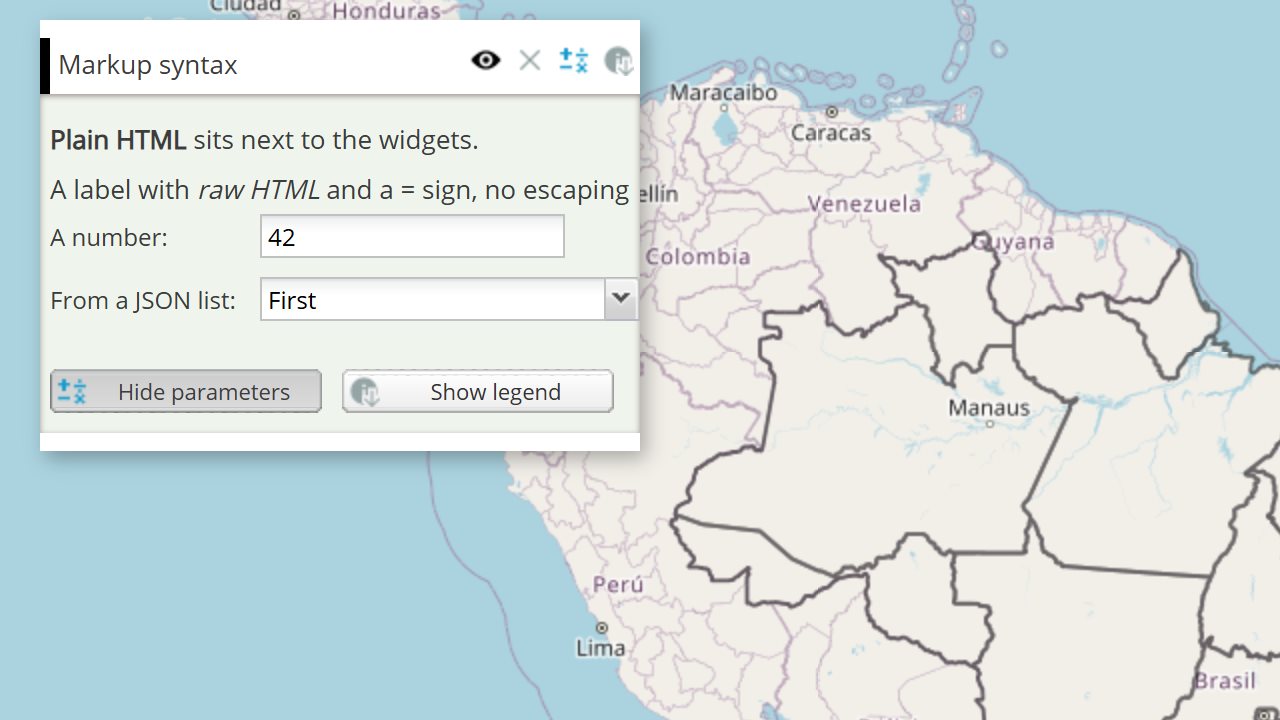

The example below, running in the Mappia calculator - click it to run it live. Full-size picture
- Run it
Click the picture: the map opens right here and runs the example. Nothing is saved, and nothing to install.
- Try it
- Read the panel: plain HTML, a label with an = sign, a number field and a list sit together.
- Type letters into “A number”: the field is marked invalid, because
isnumeric=trueaccepts only numbers. - Open “From a JSON list”: its choices, First and Second, come from the JSON written in
data.
- Make it yours
Copy the query, change it - the key parameters are below - and run it again in the playground, or paste it into the Mappia editor to save it as your map.
Key parameters
| Parameter | Example | What it does |
|---|---|---|
defaultParsing | value=42 | A number becomes a number; anything else stays text, so param=true is the text “true”. |
falseValue | notify=false | Becomes an empty, false value: the way to switch off a parameter that is on by default. |
escapedEquals | url=https://example.com/data.csv?v\=2 | Puts a literal = in a value. Inside a JavaScript string, write it \\=. |
html | html=A label with <i>raw HTML</i> and a = sign | Taken as written up to the next |: equals signs and HTML need no escaping. |
getid | getid=year | Refers to an element created earlier in the same description, for example to listen to its events. |
content | <b>Plain HTML</b> sits next to the widgets.<br> | Everything outside the double braces is passed through as HTML, so headings and containers mix with widgets. |
Every parameter, with its type and default, is in the reference at the end of this page.
Complete example
The query 17 lines · runs as is
// Markup syntax: plain HTML around widgets; numbers become numbers, JSON lists are parsed,
// html= is taken verbatim (no escaping needed), and param=false switches a flag off.
[
{
title: "Markup syntax",
name: "CSR:estados",
source: "calculate",
opacity: 0.6,
visibility: true,
paramsButtonConfig: [{ type: "query", pressed: true }],
descriptionHtml:
"<b>Plain HTML</b> sits next to the widgets.<br>" +
"{{label|html=A label with <i>raw HTML</i> and a = sign, no escaping}}" +
"{{textfield|id=amount|fieldLabel=A number|value=42|isnumeric=true}}" +
'{{combobox|id=choice|fieldLabel=From a JSON list|editable=false|data=[["First"],["Second"]]}}',
},
];Customize it
The shape of a tag
{{widgetName|param=value|other=value}}
The tag name comes first, then parameters separated by |. An unknown tag name renders nothing; the browser console shows {{MARKUP}} INVALID OBJECT NAME. The tag names are listed in the widget catalogue.
Values
| You write | The widget receives |
|---|---|
value=42 | The number 42 |
text=Hello | The text "Hello" |
pressed=true | The text "true", which counts as on |
notify=false | An empty value, which counts as off |
param= or a bare param | An empty value (a bare isnumeric is the exception: it switches the check on) |
data=[["First"],["Second"]] | Text the widget reads as JSON (lists such as data, steps, values) |
a=b=c | A nested object, { a: { b: "c" } } - plugins=tip={0}% gives a slider its value tip this way |
A combobox’s data is a list of one-element lists: each value is both what the list shows and what the input holds. A second element in a pair is ignored.
Escaping
\=puts a literal=inside a value, which URLs with query strings need. The markup is usually written inside a JavaScript string, where the backslash itself must be doubled:"{{loadcsv|id=tbl|url=/data/fires.csv?year\\=2020}}".html=is the exception: its value is taken as written up to the next|, so HTML and=signs need no escaping.- The
|always separates parameters, insidehtml=too.
Repeated parameters
The last one wins, except cls, whose values are joined with no separator - start the second one with a space, or list all the classes in one cls.
Callbacks
Parameters such as handler=, runOnClick= and onSelect= name a function. The name is looked up first in the layer’s functions, then among the query’s globals; failing both, the text itself is run as the function’s body. Prefer functions on the layer:
descriptionHtml: "{{button|id=apply|text=Apply|handler=onApply}}",
functions: {
onApply: function () {
ExtjsUtils.ALERTIFY.log("Applied"); // this = the layer
},
},
Referring to other elements
getid=ID points to an element created earlier in the same description, and getid=ID|getid=on_<event>=<code> attaches a listener to it. Order matters: the element must come first. The complete rules are in the widget markup language.
