Quick start

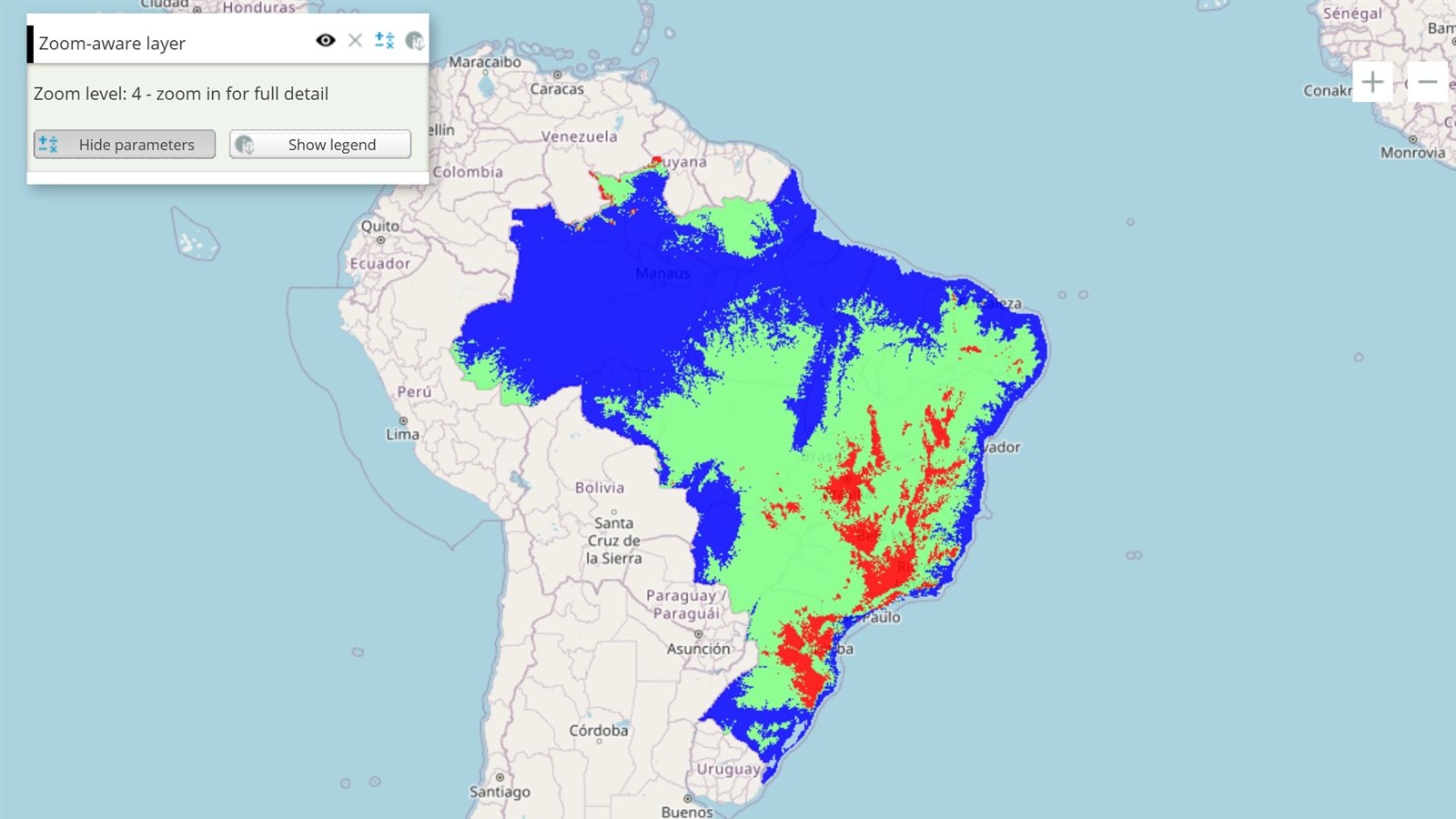

The example below, running in the Mappia calculator - click it to run it live. Full-size picture

1. Run it

   Click the picture: the map opens right here and runs the example. Nothing is saved, and nothing to install.

2. Try it
   • Read the label in the layer’s panel: it shows the current zoom level.
   • Zoom in to level 7 or deeper: the coarse 500 m elevation classes give way to full detail.
   • Zoom back out below 7: the elevation returns to 500 m steps.
3. Make it yours

   Copy the query, change it - the key parameters are below - and run it again in the playground, or paste it into the Mappia editor to save it as your map.

Key parameters

Parameter	Example	What it does
id	z	Required. Names the zoom: read it as inputs.id['z'] in beforeCalc, and by position (inputs[0] here) inside expression.
value	7	What the input holds: the map’s current zoom level as a number, refreshed when the map stops moving.

Every parameter, with its type and default, is in the reference at the end of this page.

Complete example

The query 21 lines · runs as is

// ZoomLevel: renders nothing; it hands the map zoom to the layer and recalculates when the
// zoom changes. Here beforeCalc writes it into a label.
[
  {
    title: "Zoom-aware layer",
    name: "CSR:altimetria",
    source: "calculate",
    opacity: 0.85,
    visibility: true,
    paramsButtonConfig: [{ type: "query", pressed: true }],
    descriptionHtml: "{{zoomlevel|id=z}}{{label|id=zoom_label|text=Zoom level: ...}}",
    beforeCalc: function (inputs) {
      var label = Ext.getCmp("zoom_label");
      if (label) label.setText("Zoom level: " + inputs.id["z"] + " - zoom in for full detail");
    },
    expression: function (layersVals, inputs) {
      // coarse 500 m classes when zoomed out, full detail when zoomed in
      return inputs[0] < 7 ? Math.round(layersVals[0] / 500) * 500 : layersVals[0];
    },
  },
];

Customize it

When it changes

The value is refreshed each time the map stops moving, but only a change of zoom counts as an input change. Panning alone does not start a new calculation round for it; tiles that come into view are still computed as usual. A zoom change then follows the usual rule for inputs: the layer recalculates after a short countdown, or right away with updateAutomatically: true.

Swap maps by zoom

beforeCalc can read the zoom and change the map the layer reads. Here the layer shows municipalities when zoomed in and states when zoomed out:

descriptionHtml: "{{zoomlevel|id=z}}",
beforeCalc: function (inputs) {
  var zoomedIn = inputs.id["z"] > 10;
  this.changeLayers({ name: zoomedIn ? "CSR:municipalities" : "CSR:estados", index: 0 });
},

Write the zoom on screen

The example sets a label’s text in beforeCalc. Check that the label exists before using it, as the example does, because Ext.getCmp returns undefined for an id it cannot find.

Pitfalls

• {{zoomlevel}} renders nothing, so nothing on screen tells you it is there. Give it an id or you cannot read it by name.
• It is an input: it takes a position in inputs, in descriptionHtml order. Count it when you read other inputs by position inside expression.
• Inside expression there is no inputs.id; read the zoom by position.

Reference: every parameter

Generated from the platform source. Every entry, searchable, is in the API reference; the raw data is api.json. Open an entry for its description, parameters and example; # links to it.

zoomlevel · current zoom (input)

ZoomLevel2 entries

Written in a layer's descriptionHtml as {{zoomlevel|parameter=value|...}}

A hidden input whose value is the current map zoom level; the layer recalculates whenever the zoom changes.
Usage: {{zoomlevel|id=zoom}} then inputs.id['zoom'] in beforeCalc/expression

id

String# Defines the id of the input; it is the key used to read the zoom level in inputs.id[ID] (required, the tool renders nothing visible).

Defines the id of the input; it is the key used to read the zoom level in inputs.id[ID] (required, the tool renders nothing visible).

|id=zoom|

value

Number# Value stored in inputs.id[ID] (and inputs[i]) for beforeCalc/expression: the current map zoom level as a number.

Value stored in inputs.id[ID] (and inputs[i]) for beforeCalc/expression: the current map zoom level as a number. It is refreshed on the map moveend event and only triggers a recalculation when the zoom actually changed (panning is ignored).

{{zoomlevel|id=zoom}}

beforeCalc: function(inputs) {
    var zoom = inputs.id['zoom'];
    this.changeLayers({name: zoom > 10 ? 'CSR:municipalities' : 'CSR:estados', index: 0});
}
