Expression

Quick start

▶ Run it live

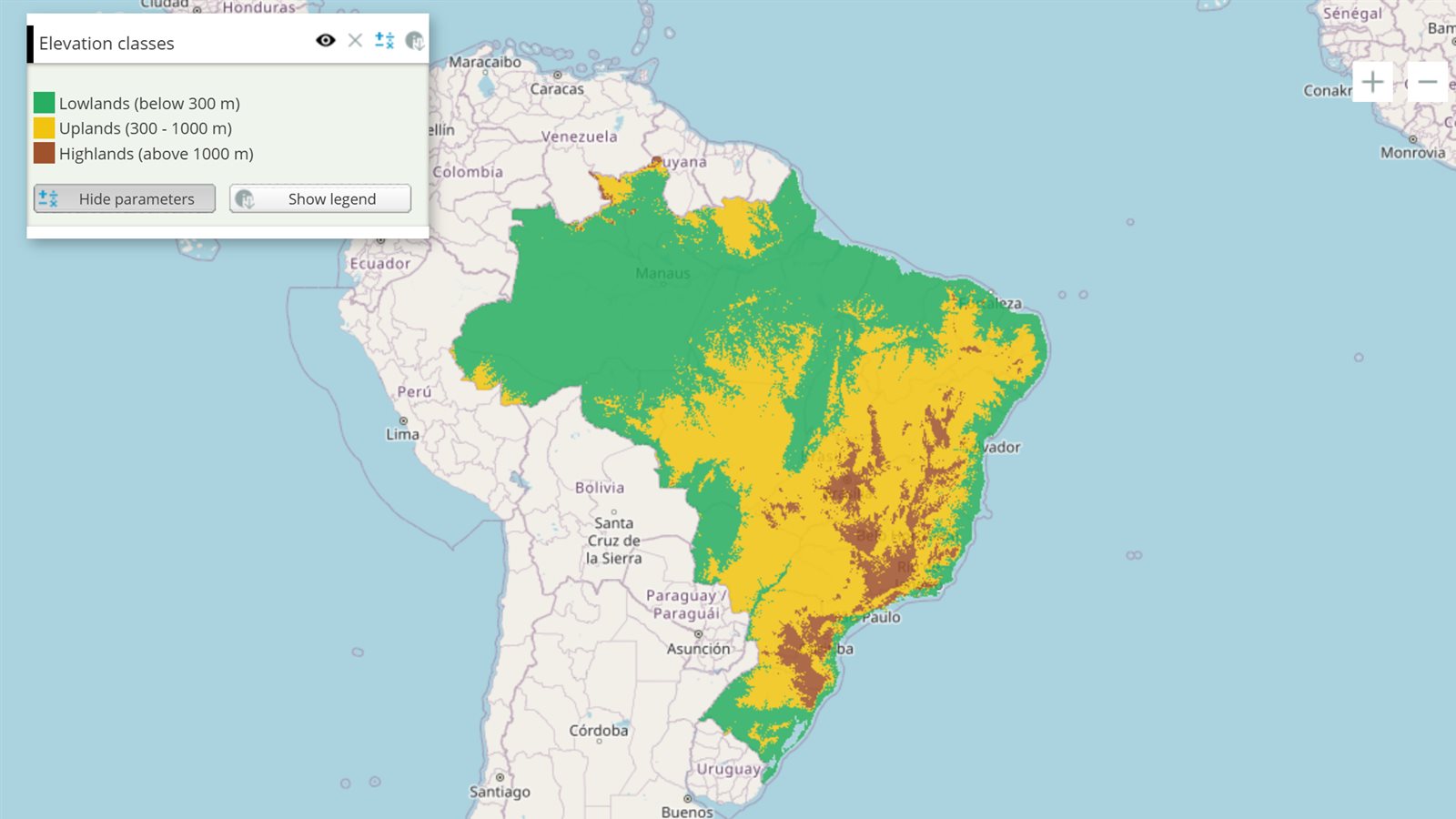

The example below, running in the Mappia calculator - click it to run it live. Full-size picture

1. Run it

   Click the picture: the map opens right here and runs the example. Nothing is saved, and nothing to install.

2. Try it
   • Look at the legend in the layer panel: three elevation classes in green, yellow and brown.
   • Zoom into a mountain range: land above 1000 m is painted brown, lowlands green.
3. Make it yours

   Copy the query, change it - the key parameters are below - and run it again in the playground, or paste it into the Mappia editor to save it as your map.

   Copy the query
4. More ways to use it
   • Two maps in one expression

Key parameters

Every parameter, with its type and default, is in the reference at the end of this page.

Complete example

// Expression: runs once per pixel, in a worker, over the values of the maps in `name`.
// Here elevation is reclassified into three classes with a legend set in beforeCalc.
[
  {
    title: "Elevation classes",
    name: "CSR:altimetria",
    source: "calculate",
    opacity: 0.85,
    visibility: true,
    paramsButtonConfig: [{ type: "query", pressed: true }],
    descriptionHtml: "{{legendhtml}}",
    beforeCalc: function () {
      this.setCalculateLegend([
        { color: [39, 174, 96], value: 1, title: "Lowlands (below 300 m)" },
        { color: [241, 196, 15], value: 2, title: "Uplands (300 - 1000 m)" },
        { color: [160, 82, 45], value: 3, title: "Highlands (above 1000 m)" },
      ]);
    },
    expression: function (layersVals) {
      var elevation = layersVals[0];
      if (!this.isNumeric(elevation)) return this.nullValue;
      return elevation < 300 ? 1 : elevation < 1000 ? 2 : 3;
    },
  },
];

More examples

Other ways to use Expression, each a complete query that runs as is - like the one above.

Two maps in one expression

Name lists both maps, and each pixel brings both values - here forest biomass, kept only where the land is low.

▶ Run it live

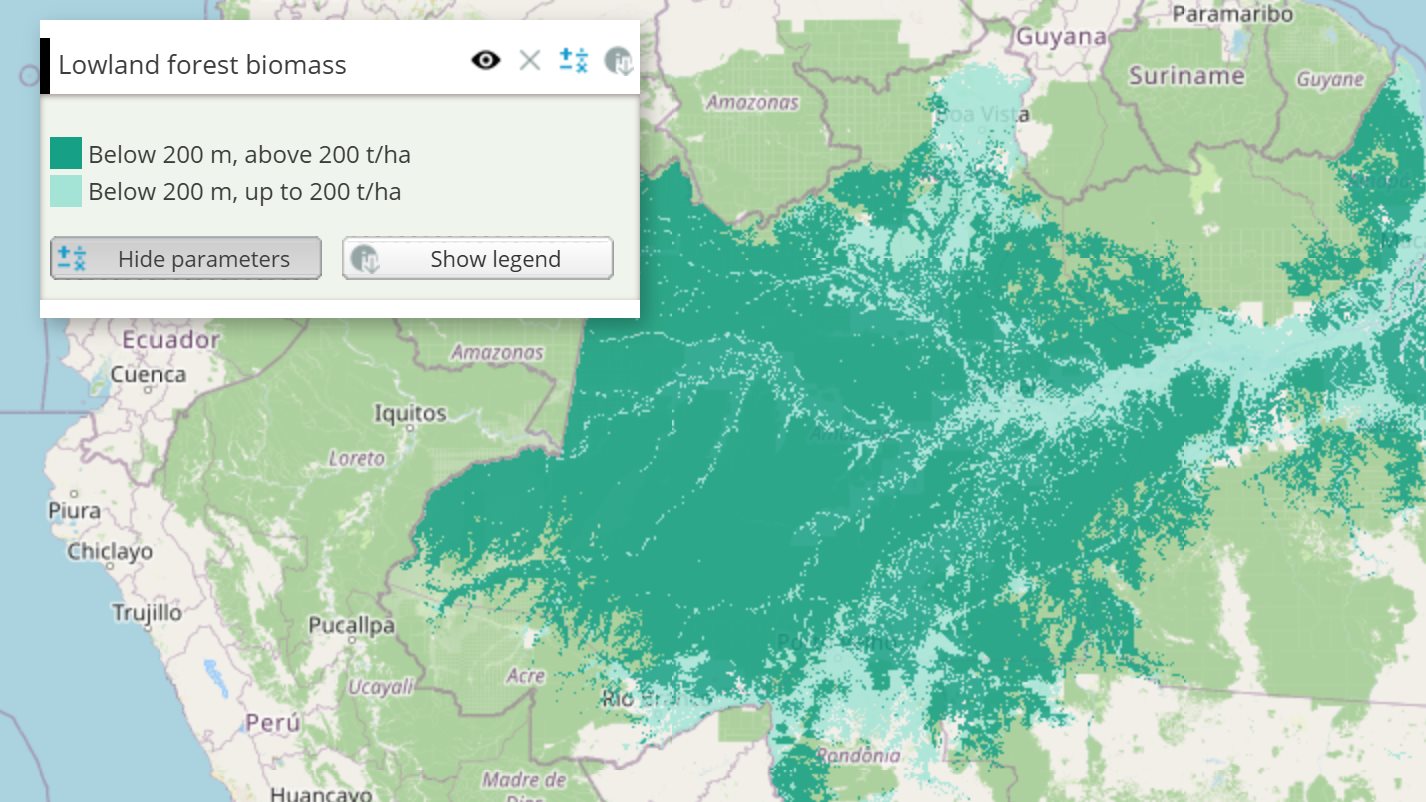

Click the picture to run it live. Full-size picture

Copy the query Edit it in the playground

The query 27 lines · runs as is

Copy

// Two maps in one expression: name lists both maps, and each pixel brings both values - here forest biomass, kept only where the land is low.
// layersVals follows the order of name: [0] the biomass (t/ha), [1] the elevation (m).
// A pixel where either map has no data is left out.
[
  {
    title: "Lowland forest biomass",
    name: "CSR:biomassa_baccini_bioma_am,CSR:altimetria",
    source: "calculate",
    opacity: 0.85,
    visibility: true,
    paramsButtonConfig: [{ type: "query", pressed: true }],
    descriptionHtml: "{{legendhtml}}",
    beforeCalc: function () {
      this.setCalculateLegend([
        { color: [22, 160, 133], value: 1, title: "Below 200 m, above 200 t/ha" },
        { color: [163, 228, 215], value: 2, title: "Below 200 m, up to 200 t/ha" },
      ]);
    },
    expression: function (layersVals) {
      var biomass = layersVals[0];
      var elevation = layersVals[1];
      if (!this.isNumeric(biomass) || !this.isNumeric(elevation)) return this.nullValue;
      if (elevation >= 200) return this.nullValue;
      return biomass > 200 ? 1 : 2;
    },
  },
];

Customize it

The rules of expression

• The layer is source: "calculate"; name lists the maps it reads.
• expression runs in a background worker, once per pixel. It sees only its arguments and this: no variables from the code around it, no window, no page, no map.
• layersVals[i] is the value of the i-th map of name. With name: "CSR:geologia,CSR:altimetria", layersVals[0] is geology and layersVals[1] elevation.
• inputs is a plain array of the widget values, in the order the widgets appear in descriptionHtml: inputs[0] is the first. inputs.id[ID] does not exist here; it works in beforeCalc, afterCalc, onInputsReady and functions.
• Return the pixel’s value, or this.nullValue for no data (a transparent pixel).
• Write it as a regular function: this.isNumeric(v) and this.nullValue come from this.

Where the values come from

An ordinary map gives the value of its legend entry: a number label becomes the number, a range such as “10 - 20” becomes its middle (15), and a text label such as “Floresta” stays text. Check with this.isNumeric(v) before doing arithmetic. For the original cell values, read maps published as raw maps with an operation (raw, sum, average, area…), one token per map of name; see the property catalogue.

Use a widget value

descriptionHtml: "Minimum elevation {{slider|id=min_elev|minValue=0|maxValue=2000|value=800}}",
expression: function (layersVals, inputs) {
  var elevation = layersVals[0];
  if (!this.isNumeric(elevation) || elevation < inputs[0]) return this.nullValue;
  return elevation;
},

Moving the slider recalculates the layer. Anything else the expression needs (a table, a picked feature, a value from another layer) must be turned into plain data in beforeCalc and passed as an input: an InputManager arrives as inputs[i].global.

Build the legend yourself

By default the platform builds the legend from the values the expression returns: ranges coloured from blue to red, or one entry per value with categorical: true. To fix the classes and colours, call this.setCalculateLegend(entries) in beforeCalc, as the example does:

• sort the entries by value, ascending; value is the highest value that maps to the entry;
• color is an [R, G, B] array. A CSS string such as "#c0392b" throws color.join is not a function;
• add {{legendhtml}} to descriptionHtml to show the legend in the panel.

To keep the automatic classes and only choose their colours, use legendColor.

Before and after the calculation

onInputsReady(inputs) runs once, when every widget has a value. beforeCalc(inputs) runs on the page before each calculation, even without an expression. afterCalc runs after it, and only when the layer has an expression. The order and what each one may touch are in the execution model.

Pitfalls

• A map not published with the requested operation leaves the layer empty; the console says Operation X is not defined for layer Y.
• A value that is undefined only inside expression came from a variable, the page or a global: compute it in beforeCalc and pass it as an input.
• More traps are listed in pitfalls.
